Trident Marine 3/8" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black [365-0386]

Trident Marine 3/8" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black [365-0386]

Regular price $141.99 USD
Regular price $291.20 USD Sale price $141.99 USD
Sale Sold out

3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

  • Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Application:

  • Marine Fuel Hose (distribution, return, vent and transfer)
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

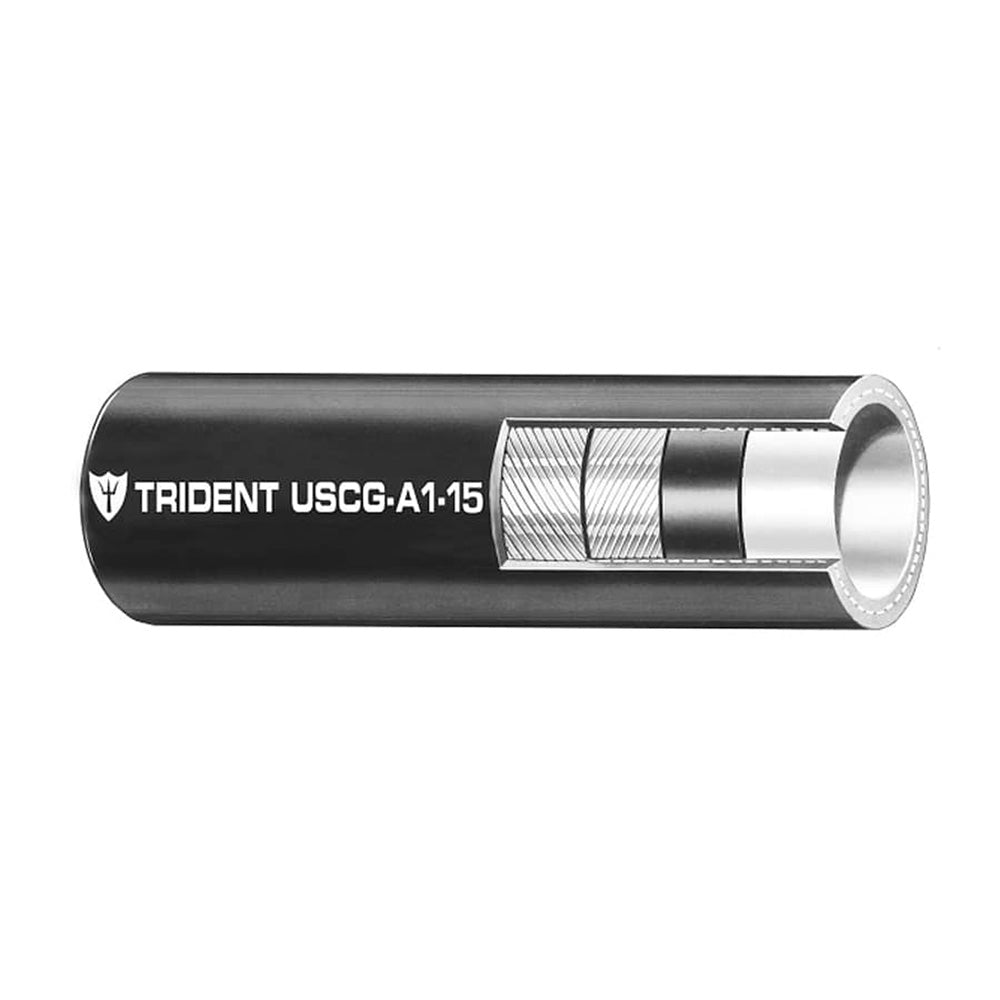

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50 ft. (15 m) Boxed

Specifications:

  • Inner Diameter: (inch) 3/8" / (mm) 9.50
  • Outer Diameter: (inch) 0.681 / (mm) 17.3
  • Burst Pressure: (psi) 400 / (mpa) 2.76
  • Working Pressure: (psi) 100 / (mpa) 0.69
  • Bend Radius: (inch) 2" / (mm) 50.8
  • Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
  • Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
