Schaefer Marine

Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]

Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]

Regular price $297.99 USD
Regular price $348.55 USD Sale price $297.99 USD
Sale Sold out

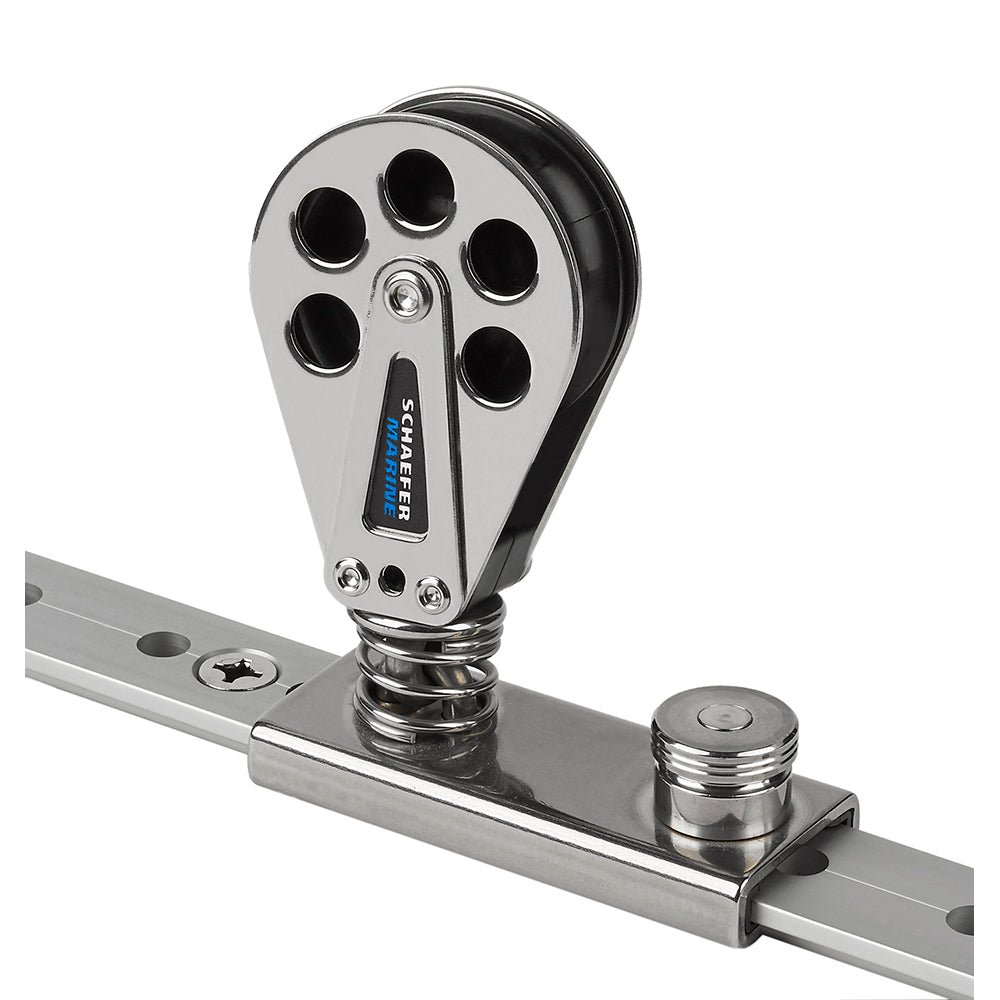

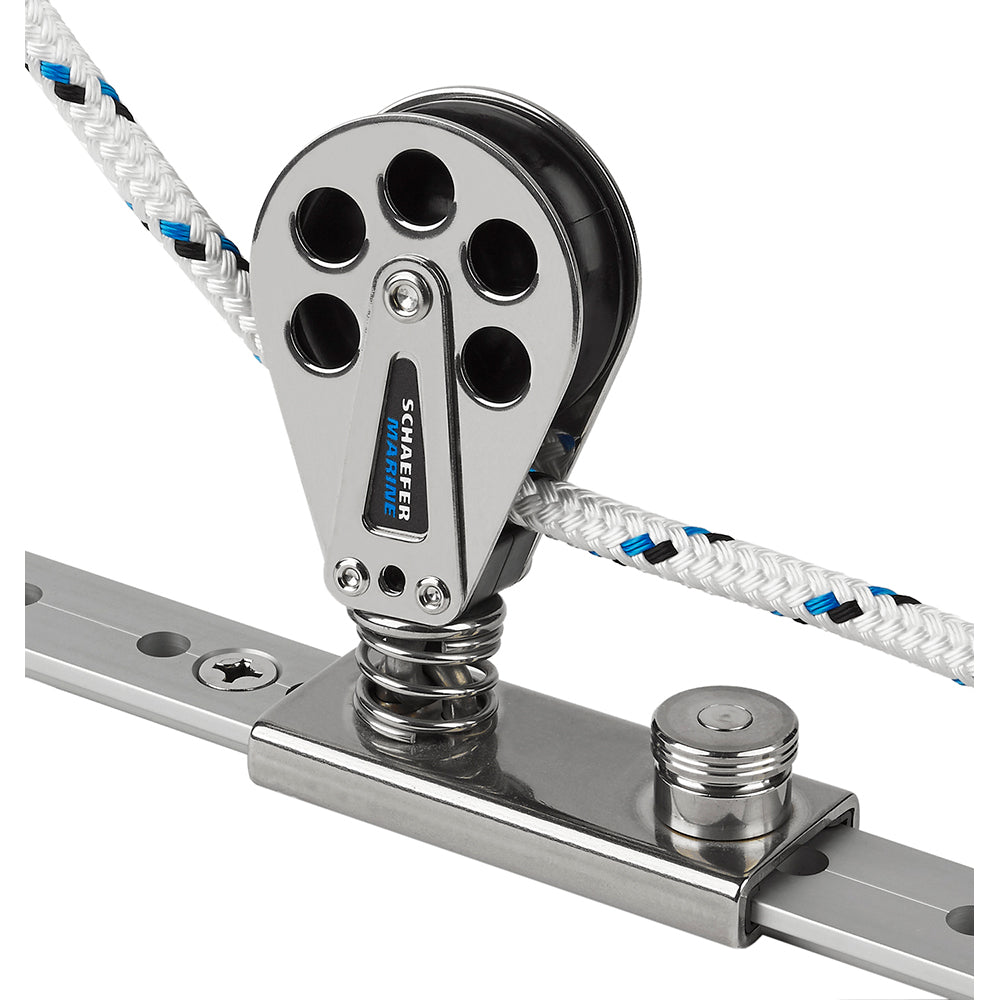

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
  • Max. Boat Length 33' (10 m)
  • Max. Boat Weight 12000 lbs. (5455 kg)
  • Max. Sail Area 520 sq. ft. (48 m2)
  • Sheave Diameter 2-3/8" (60 mm)
  • Max Line 1/2" (12 mm)
  • Length 4" (102 mm)
  • Width 1-9/16" (39 mm)
  • Height 4-15/16" (126 mm)
  • Bearing Height 2-3/8" (67 mm)
  • SWL 2250 lbs. (1020 kg)
  • Weight 14 oz. (397 g)
