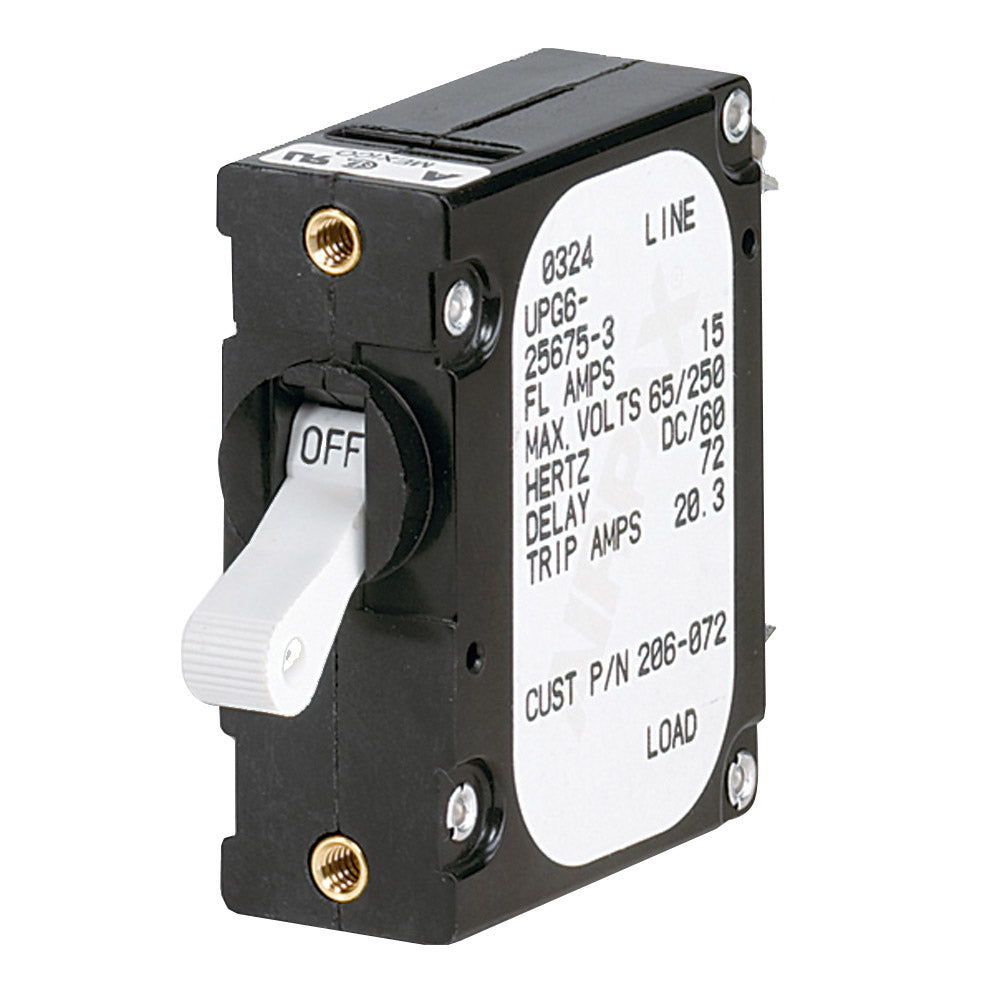

Paneltronics 'A' Frame Magnetic Circuit Breaker - 15 Amps - Single Pole [206-072S]

"A" Frame Magnetic Circuit Breakers

15 Amp
Single Pole

• Standard branch AC or DC circuit breaker for Paneltronics electrical distribution panels

• Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breaker

• UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada (ABYC E-11.12.2.8.

• Trip free (ABYC E-11.12.1.7.2.2. and E-11.12.2.8.1.)

• Manual reset (ABYC E-11.12.1.7.2.4. and E-11.12.2.8.1.)


Specifications:

• Amperage: 15a
• Box Dimensions: 2"H x 2"W x 2"L WT: 0.2 lbs
• UPC: 602290200032
