Newmar PX-2 Junction Box [PX-2]

Newmar PX-2 Junction Box [PX-2]

Regular price $51.99 USD
Regular price $56.00 USD Sale price $51.99 USD
Sale Sold out

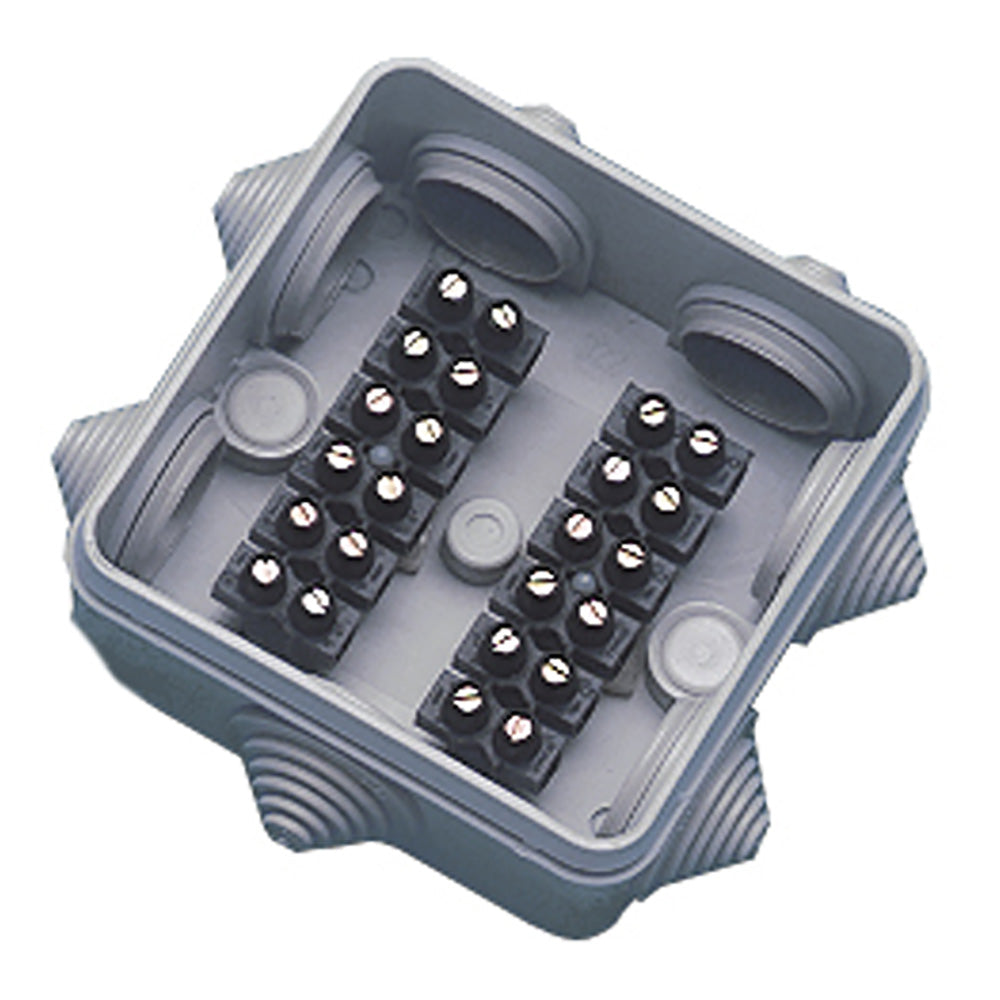

PX-2 Junction Box

This waterproof junction box is ideal for making wiring connections above or below decks, even in areas subject to occasional spray.

Connector Strips Installed in Boxes

Molded nylon encases pairs of connectors that use screw compression to secure wires without the use of lugs. Ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel “finger” compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage and meeting ABYC standards.

Features:

  • Similar to BX Series junction boxes but made from rugged, non-corrosive, high-impact polypropylene
  • The snap-on cover provides a watertight seal
  • “Universal” cut-to-fit graduated diameter cable entries accommodate a wide cable range
  • Multiple position connector strips with “captive” screw compression wire terminals installed, see matrix below for connector strip specifications per box
  • Multiple knockouts are provided for conduit access (in addition to cable entries)
  • IEC Waterproof Rating: IP55 – “Water projected in jets against the enclosure from any direction shall have no harmful effects.”

Specifications:

  • Number of Connector Strips: 2
  • Positions per Strip: 6
  • Max Wire Gauge: 16
  • Number of Cable Entry Ports: 7
  • Number of Cable Entries Installed: 7
  • Spare Cable Entries Provided: 0
  • Cable Diameter Range (inches): .14 – .81
  • Cable Diameter Range (mm): 3.5 – 20.5
  • Box Size (inches): 3.35 x 3.35 x 1.66
  • Box Size (cm): 8.5 x 8.5 x 4.2

Specifications:

  • Type: Junction Box
  • Box Dimensions: 2"H x 6"W x 8"L WT: 0.15 lbs
