HEISE LED Lighting Systems

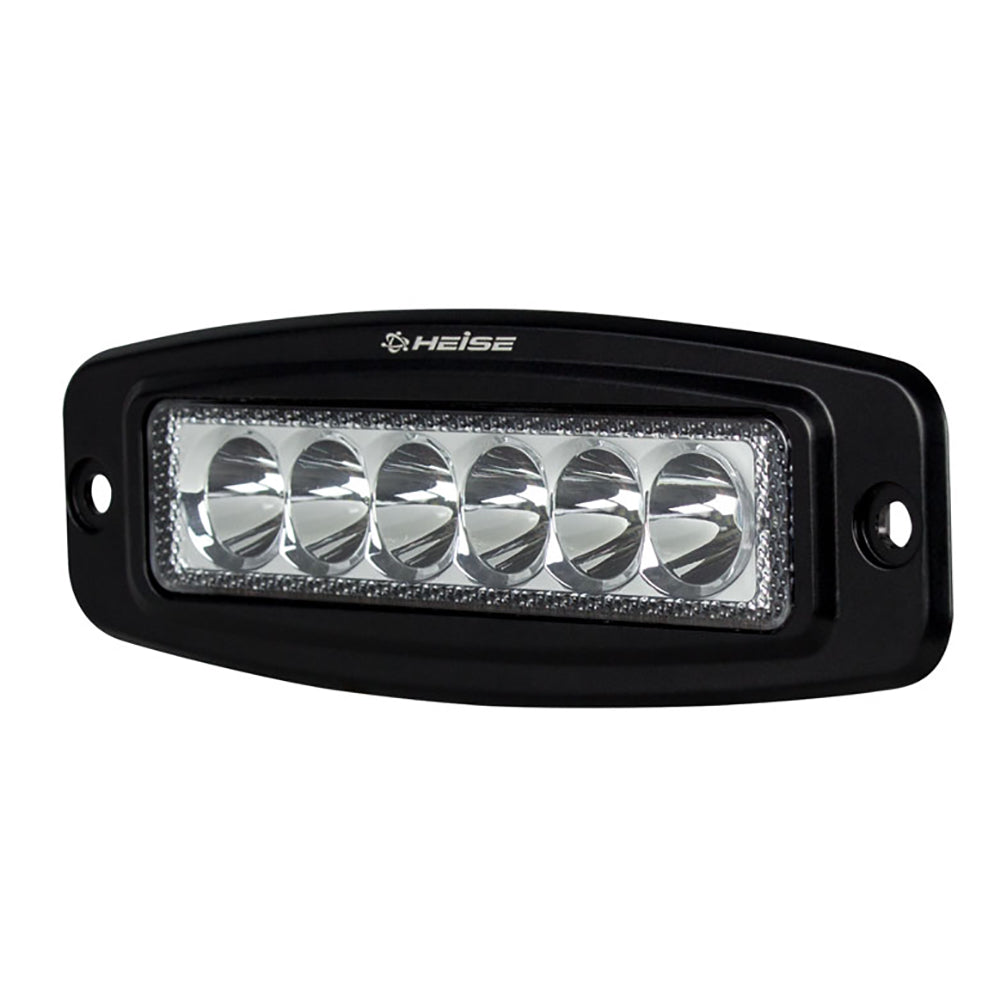

HEISE 6 LED Single Row Driving Light - Flush Mount [HE-FMDL1]

HEISE 6 LED Single Row Driving Light - Flush Mount [HE-FMDL1]

Regular price $90.99 USD
Regular price $101.99 USD Sale price $90.99 USD
Sale Sold out

6 LED Single Row Driving Light - Flush Mount

SPECS

  • Input Voltage: 10-30V DC
  • Wattage: 18W (6-3W OSRAM LEDs)
  • Raw Lumens: 1440
  • Color Temperature: 6000K
  • Beam Pattern: 25deg Spot

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Stainless Steel
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

  • Operating Temperature: -40degC to +60degC
  • Current Consumption: .9 amps at 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Driving
  • Voltage - Input Range (Volts): 10-30v
  • Length (Inches): 7.37"
  • Housing: Black
  • Box Dimensions: 3"H x 4"W x 9"L WT: 1.05 lbs
  • UPC: 086429312924
