Blue Sea Systems

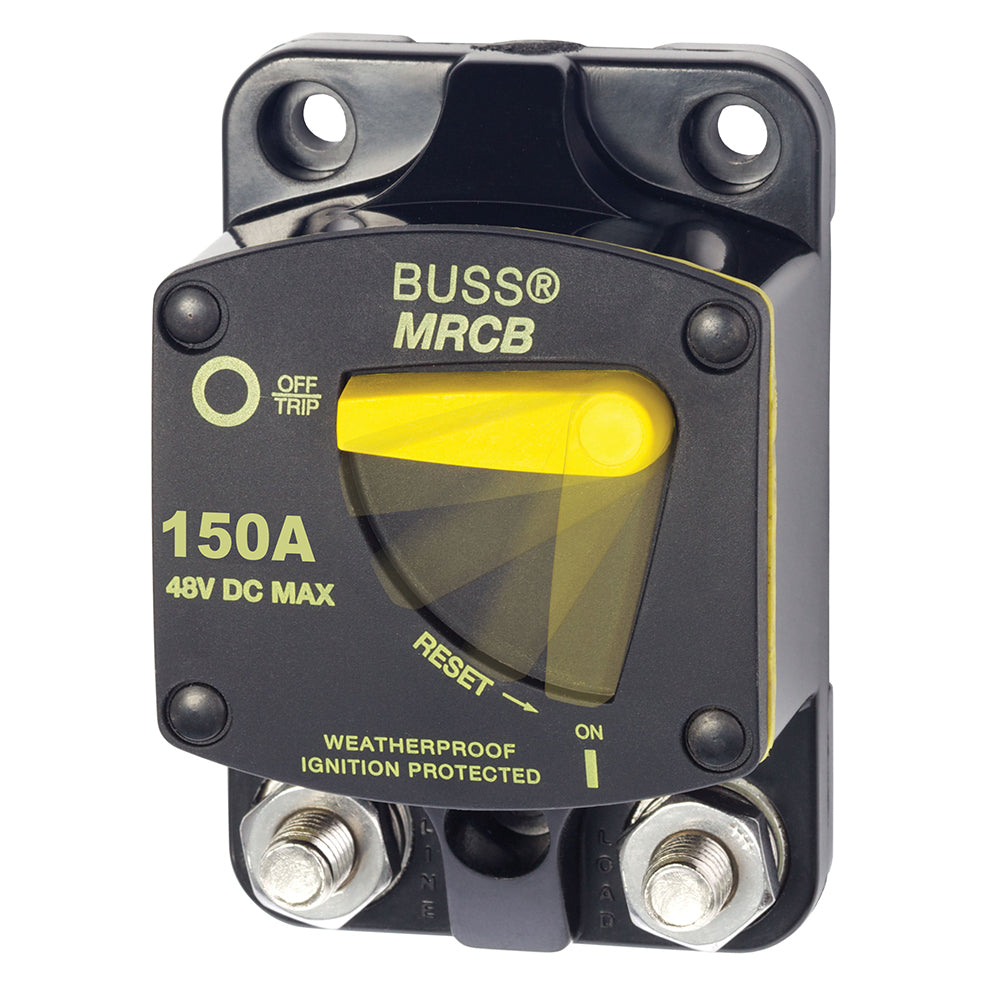

Blue Sea 7148 187 - Series Thermal Circuit Breaker - 150Amp [7148]

Blue Sea 7148 187 - Series Thermal Circuit Breaker - 150Amp [7148]

Regular price $78.99 USD
Regular price $103.68 USD Sale price $78.99 USD
Sale Sold out

187 - Series Thermal Circuit Breakers - Surface Mount

150 Amp Circuit Breaker

PN:  7148

Features:

  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free
Type: Thermally Responsive Bi-Metal Blade
Case Material: Thermoset Polyester
Voltage Rating: 48 Volts DC Maximum
Interrupt Rating: 5,000 Amperes @12 Volts DC
  3,000 Amperes @24 Volts DC
  1,500 Amperes @42 Volts DC
Operating Temperature Range: -25C° to +82C°

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 150a
  • Box Dimensions: 2"H x 5"W x 8"L WT: 0.55 lbs
  • UPC: 632085171483
