Blue Sea Systems

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position [3119]

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position [3119]

Regular price $858.99 USD
Regular price $1,010.10 USD Sale price $858.99 USD
Sale Sold out

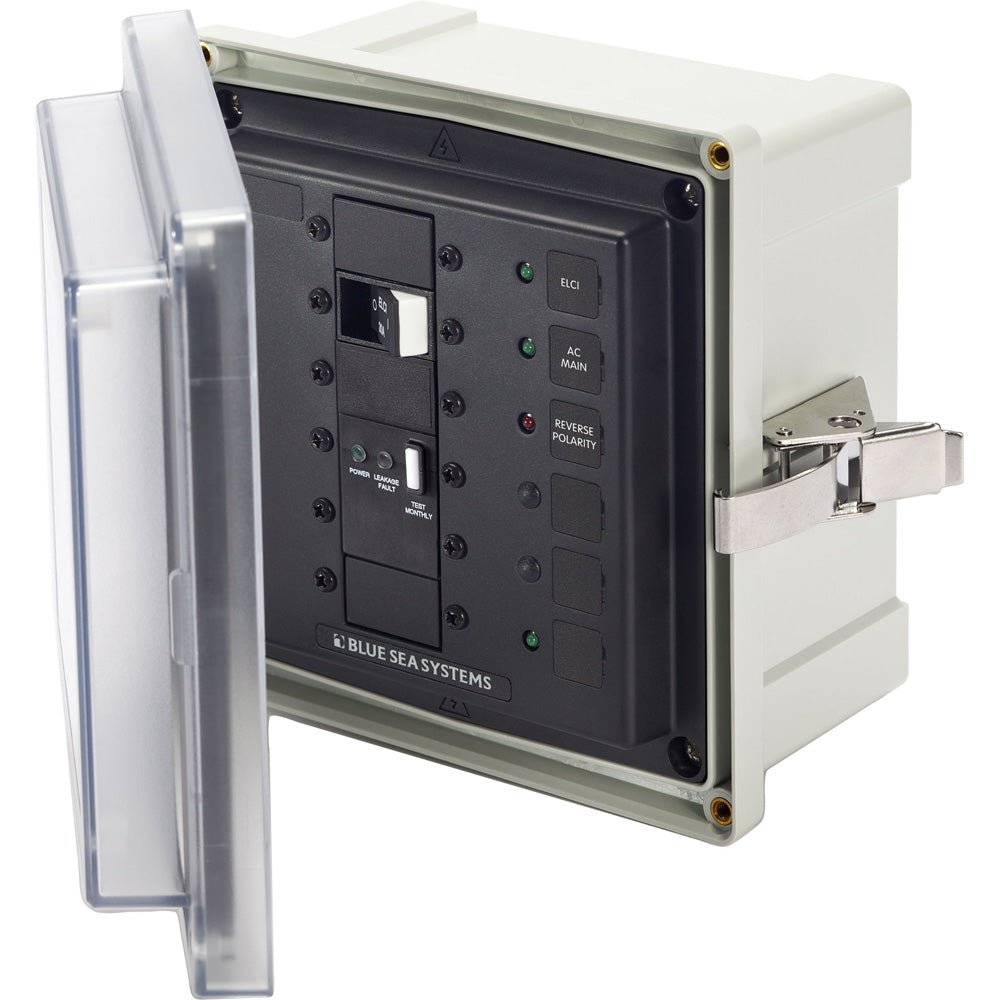

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

  • Includes one 120/240V AC / 50A ELCI Main and one blank position
  • Blank apertures for custom breaker loading
  • Glass-filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Technical Specifications:

  • Minimum Operating Temperature: -35° C
  • Maximum Operating Temperature: 66° C
  • Cover Screws and Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
  • Mounting Hardware: 1/4" Diameter, #12 (6 mm)
  • Weight: 7.00lb (3.18 kg)

In the Box:

  • 3119 Enclosure
  • Glands x 5
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Quick Guide (pdf)
Brochure (pdf)
