Albin Group DC Driven Circulation Pump w/Brushless Motor - BL90CM 12V [13-01-003]
Albin Group DC Driven Circulation Pump w/Brushless Motor - BL90CM 12V [13-01-003]

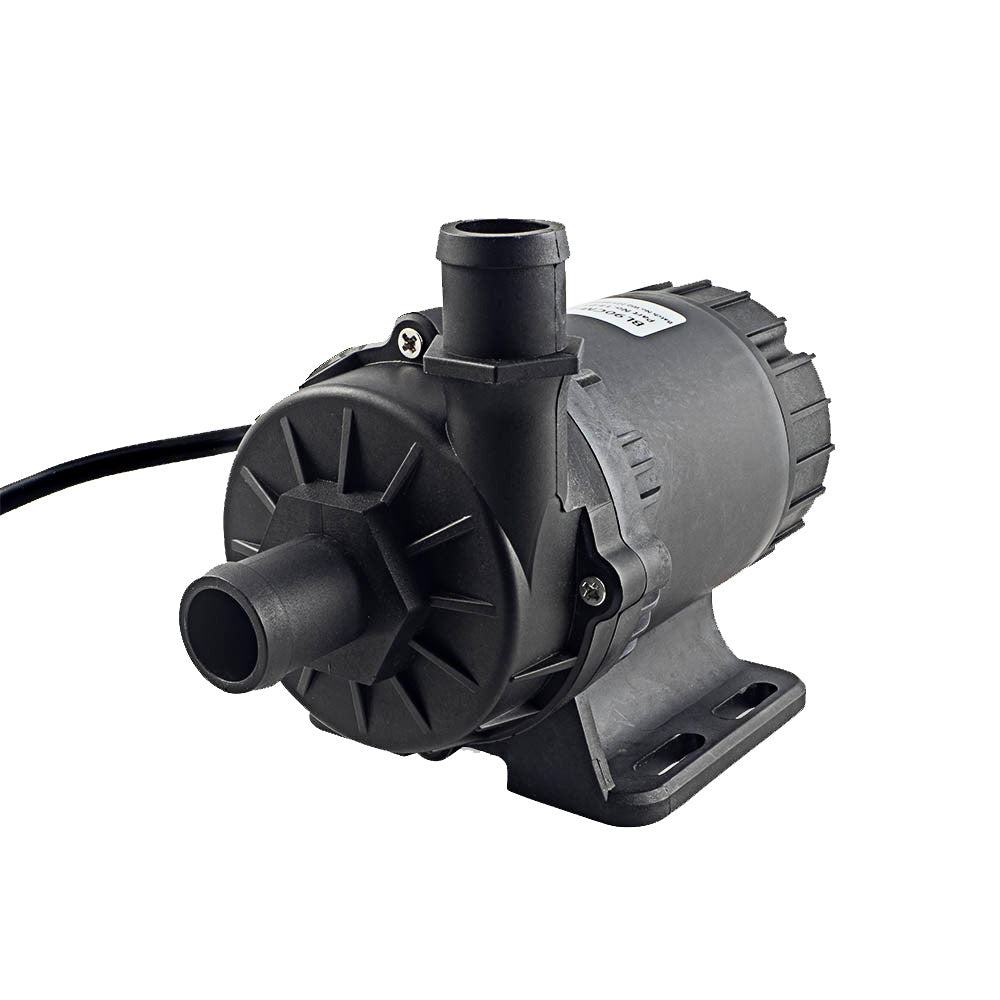

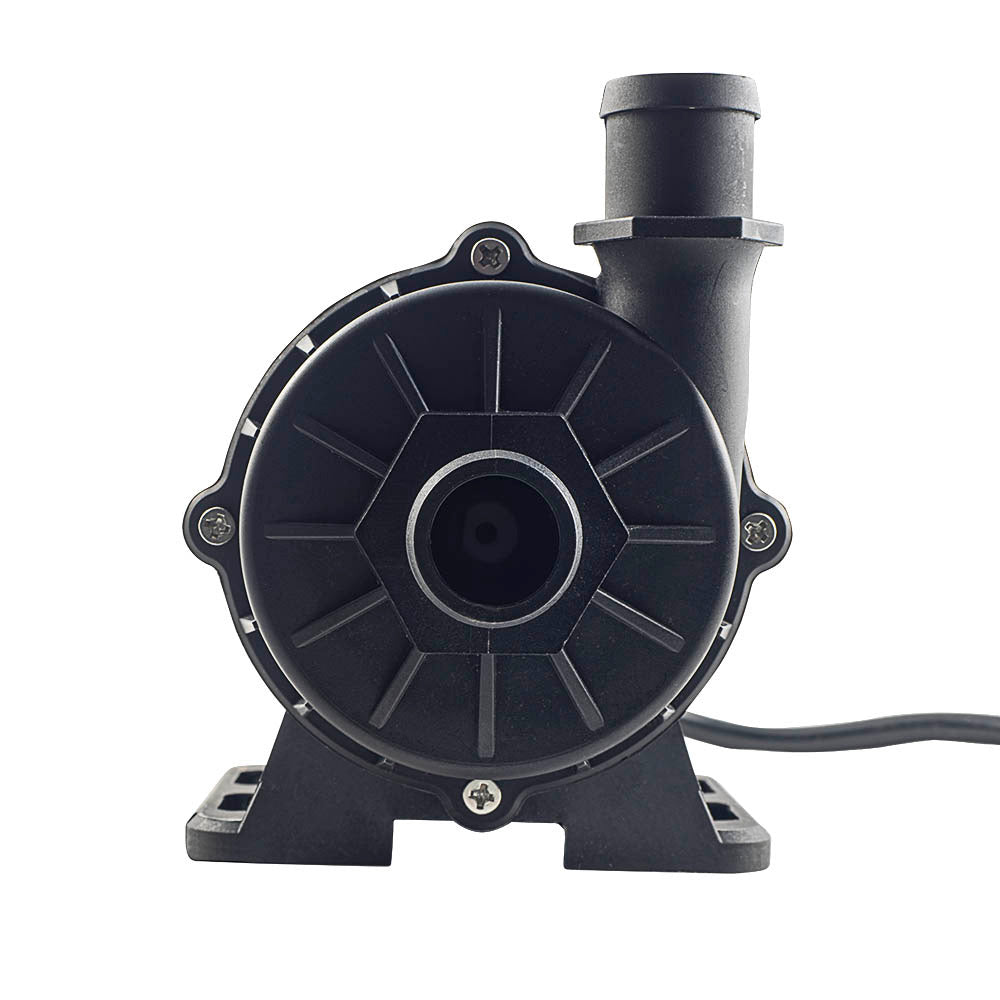

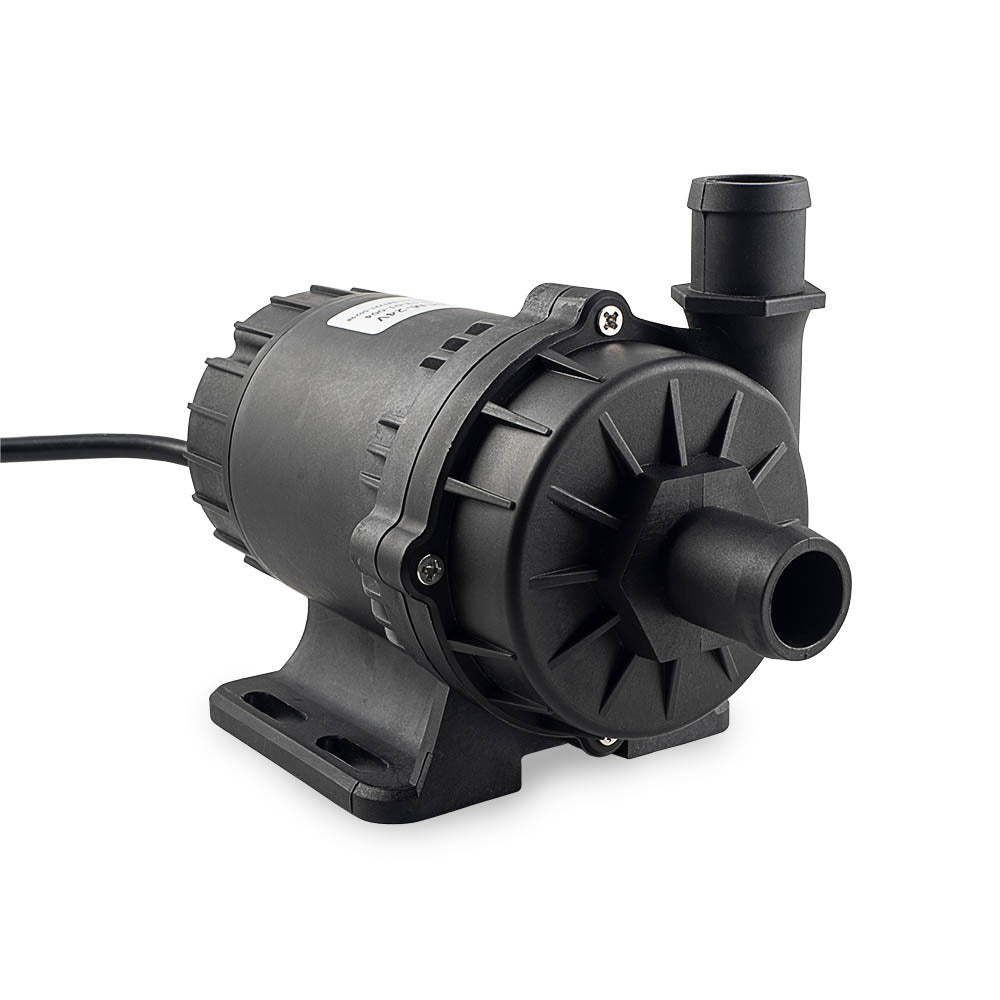

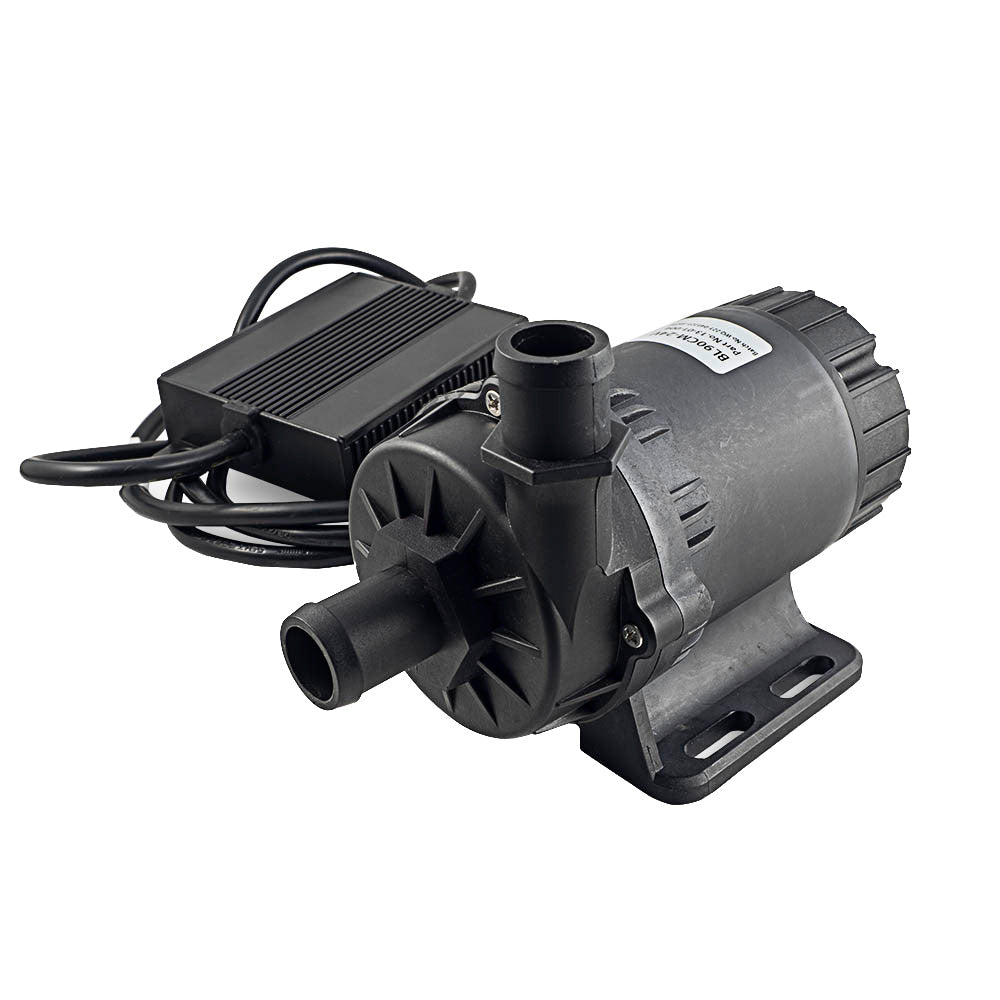

DC Driven Circulation Pump with Brushless Motor - BL90CM 12V
DC Driven Circulation Pump With Brushless Motor - BL90CM 12VThis circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- Life span: 20,000 hours
- Materials of pump housing: ABS, PES/SPS7PA66
- Motor IP classification: IP 68
- Noise class: 35dB
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications:
- Port size: (inch) 3/4" / (mm) 20
- Weight: 0.89 kg
- Capacity at 0.1 bar: 51 l/min
- Capacity at 0.25 bar: 47 l/min
- Max load: 6.6 A
- Max power consumption: 80 W
*Includes pump and motor
Specifications:
- Type: Pumps/Drives
- Box Dimensions: 5"H x 7"W x 8"L WT: 3.2 lbs
